2023 Club Car Carryall 1500 4WD Diesel

Check Availability Hi, my name is and I'm interested in this 2023 Club Car Carryall 1500 4WD Carryall 1500 4WD Diesel . I'm in the area and you can reach me at or on my phone at .




2023 Club Car Carryall 1500 4WD Diesel

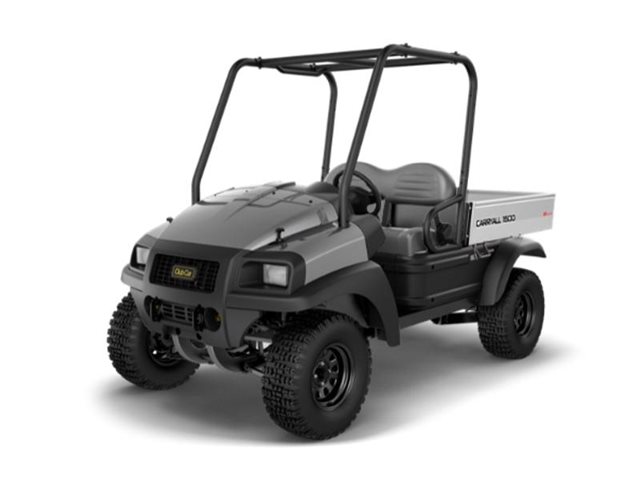

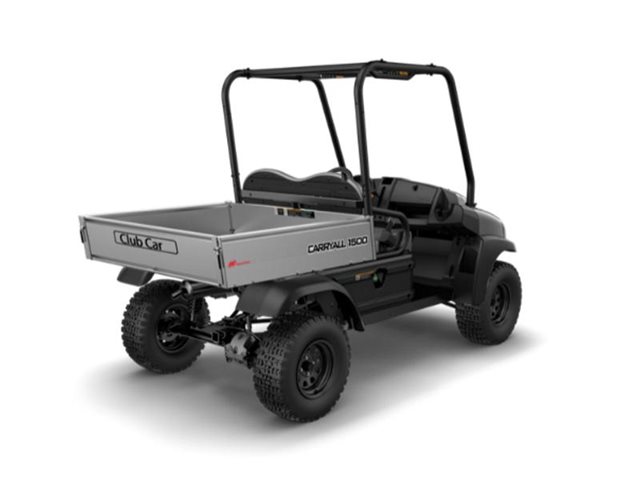

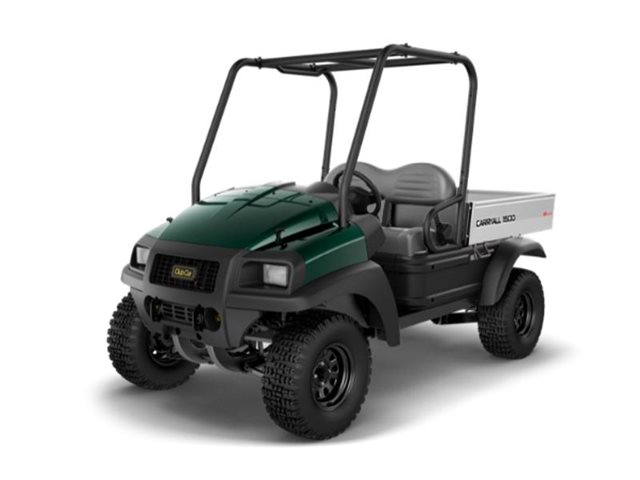

Carryall® 1500 Two-Passenger 4WD (Diesel)

The diesel model of this work utility vehicle gets down and dirty. Its 20-hp-rated (15 kW) Kubota diesel engine makes it fuel compatible on construction and industrial sites. And its IntelliTrak' all-wheel drive system senses the ground it’s on and shifts automatically. No levers to pull or buttons to push.

THE PERFECT COMBINATION

Our Carryall 1500 4WD utility vehicle provides muscle and flexibility packed on a rustproof, aircraft-grade aluminum frame.

ALL AROUND HIGH-PERFORMANCE MACHINE

Available in gasoline or diesel UTV models, the 1500 features our exclusive IntelliTrak' all-wheel drive system that senses the ground it’s on and shifts automatically. It has a semi-independent four-link rear suspension system, like those in Jeeps and Land Rovers.Powered by a gas V-twin or commercial-grade diesel engine and sporting competitive ground clearance, towing capacity, and unrivaled durability in the industry, the 1500 can handle tough jobs on rough terrain.

Features may include:

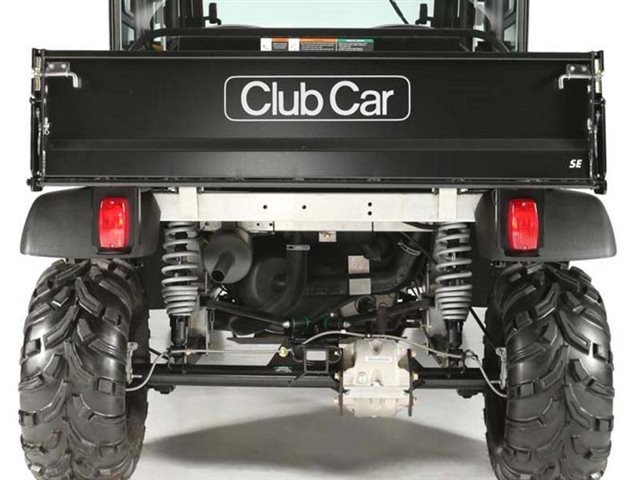

  • UNMATCHED REAR SUSPENSION

Club Car offers 4-link, semi-independent rear suspension often found on off-road automotive brands, an innovation unique to utility vehicles.This allows for heavy-duty hauling while maintaining its 8 inches of ground clearance, ensuring all four tires remain grounded while preserving torque, traction, and a smooth ride.

  • Status:
    New
  • Vehicle:
    2023 Club Car Carryall 1500 4WD Diesel
  • Location:
    Bulldog Golf Cars
  • Warranty:
    Manufacturer's w/ Extended Available

OTHER SPECS

  • Battery:
    12V 500 CCA 105min Reserve
  • Bed Box Dimensions (LxWxH) :
    48.0 x 49.8 x 10.9 in (122 x 128 x 28 cm)
  • Box Capacity :
    800 lbs (363 kg) - Standard | 1,050 lbs (476 kg) - HD Suspension
  • Cargo Capacity :
    Total
  • Chassis:
    Body and Finish
  • Drivetrain:
    IntelliTrack automatic 4x4
  • Engine Power:
    20.0 hp (15.0 kW) rated @ 3600 RPM per SAE J1995
  • Engine:
    Kubota D722, industrial grade
  • Front braking system:
    Twin piston, hydraulic disc
  • Front Suspension:
    Independent double A-arms with coil-over shocks
  • Front Tire :
    All-terrain, 25 x 10.5 - 12, 4-ply
  • Fuel Capacity:
    Tank
  • Ground Clearance:
    8.2 in (20.8 cm)
  • Overall Height:
    82.3 in. (209 cm)
  • Overall Length:
    125 in. (309.9 cm)
  • Overall Width:
    58.5 in. (148.5 cm)
  • Parking Brake:
    Foot-pedal activated, mechanical disc
  • Rear braking system:
    Single piston, hydraulic disc
  • Rear Suspension:
    Semi-Independent, 4-link solid axle
  • Steering:
    Rack and pinion with tilt steering
  • Top Speed:
    25 mph (40 km/h)
  • Towing Capacity:
    2,000 lbs (907.2 kg)
  • Turning Radius:
    11.5 ft (3.5 m)
  • Weight:
    1,550 lbs (703 kg)
  • Wheelbase:
    81.5 in. (207 cm)
