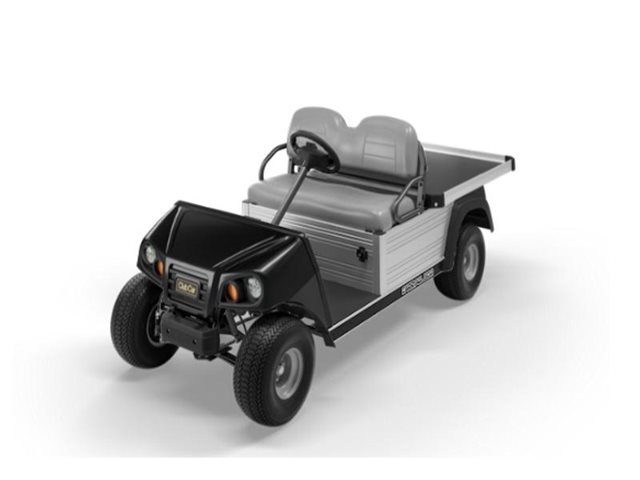

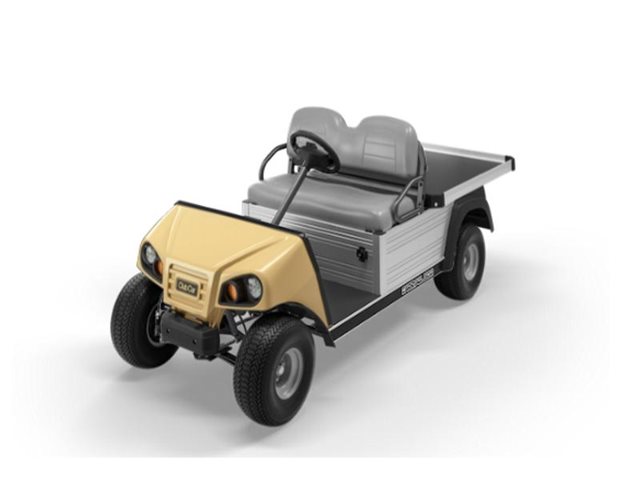

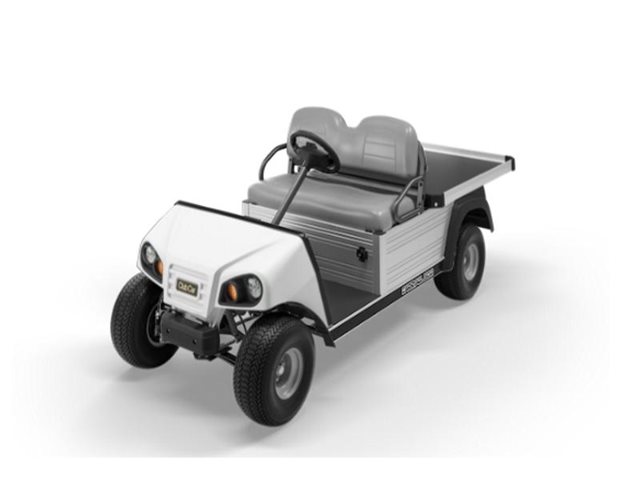

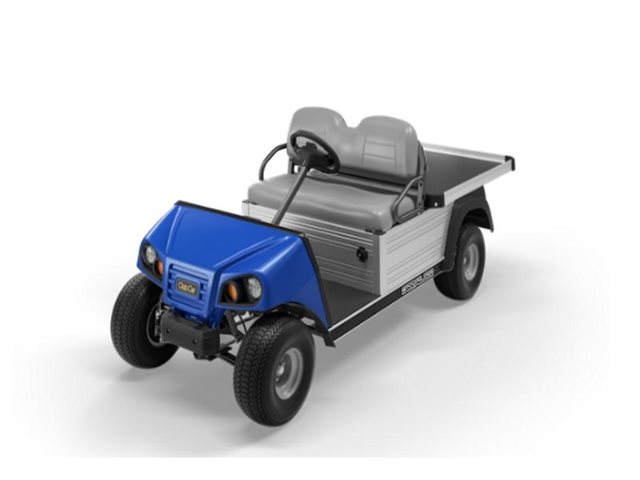

2023 Club Car Carryall 502 Electric

Check Availability Hi, my name is and I'm interested in this 2023 Club Car Carryall 502 Carryall 502 Electric . I'm in the area and you can reach me at or on my phone at .




2023 Club Car Carryall 502 Electric

Carryall® 502 (Electric)

The Carryall 502 combines the features you need most to do your best work with the quality, performance, and engineering of our 500 series. No detail was left out to ensure this vehicle works as intuitively and relentlessly as you do.

GROUNDS MAINTENANCE LIFE, UNINTERRUPTED

The Carryall 502 combines the features you need most to do your best work with the quality, performance, and engineering of our 500 series. With extra room, and a high-visibility dash, you can now manage and care for your grounds without interruption.No detail was left out to ensure this utility vehicle works as intuitively and relentlessly as you do.

  • Status:
    New
  • Vehicle:
    2023 Club Car Carryall 502 Electric
  • Location:
    Bulldog Golf Cars
  • Warranty:
    Manufacturer's w/ Extended Available

OTHER SPECS

  • Battery Charger Type:
    DeltaQ QuiQ (1 kW high frequency)
  • Battery:
    Eight 6-volt flooded lead acid
  • Bed Box Dimensions (LxWxH) :
    44.2 x 47.5 x 10.5 in (112.2 x 120.6 x 26.6 cm)
  • Bed Capacity :
    800 lb (362.8 kg)
  • Brake System Type:
    4-wheel mechanical drum
  • Cargo Capacity :
    1,200 lb (544 kg)
  • Chassis:
    Body and Finish
  • Curb Weight:
    W/ Batteries
  • Frame Type:
    AlumiCore™ — Ladder-style aluminum box beam
  • Front Suspension:
    Independent leaf spring with dual hydraulic shocks
  • Front Tire :
    18 x 10-10, 6-ply
  • Ground Clearance:
    4.2 in (10.6 cm)
  • Motor Controller:
    500 Amp - Solid state
  • Motor Power:
    3.7 hp (2.7 kW) rated, Peak 20 hp (14.9 kW)
  • Motor Torque:
    71 ft-lb (96.2 Nm) rated @ 1,450 rpm
  • Motor type:
    48-volt DC
  • Overall Height:
    47.1 in (119.6 cm)
  • Overall Length:
    118 in (299.7 cm)
  • Parking Brake:
    Foot operated, multi-lock
  • Rear Suspension:
    Semi-independent leaf spring with dual hydraulic shocks
  • Steering:
    Self-adjusting rack and pinion
  • Top Speed:
    5-17 mph (8-27 kph)
  • Towing Capacity:
    1,500 lb (680.3 kg)
  • Track Width:
    Front
  • Transmission:
    Direct drive, double reduction helical gear
  • Wheelbase:
    78.1 in (198.3 cm)
