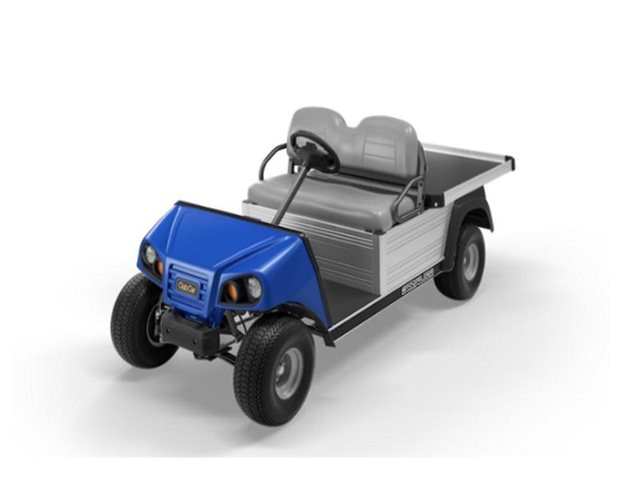

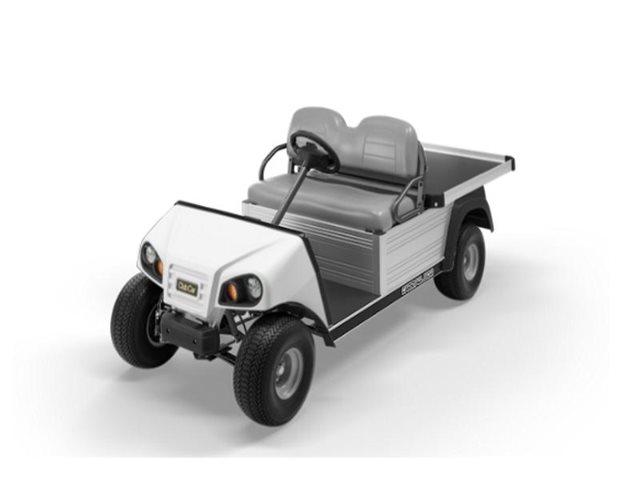

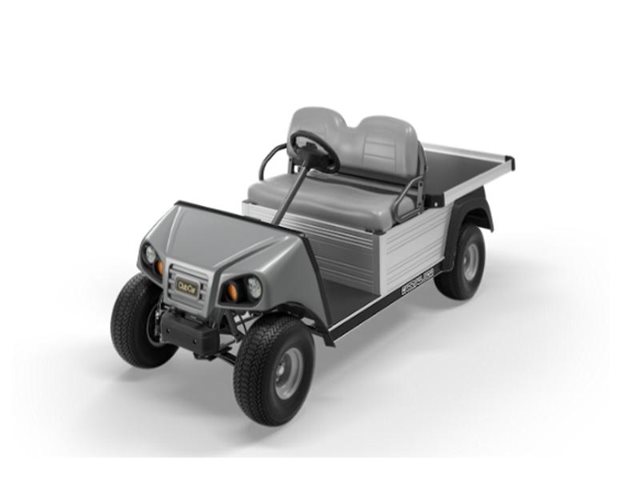

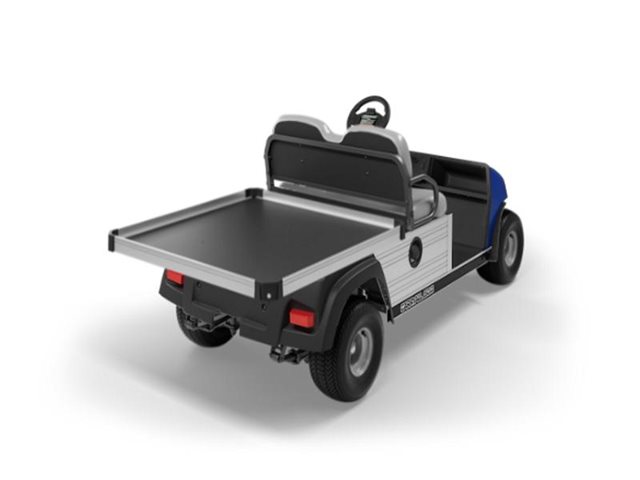

2023 Club Car Carryall 502 Gasoline
2023 Club Car Carryall 502 Gasoline
Carryall® 502 (Gas)The Carryall 502 combines the features you need most to do your best work with the quality, performance, and engineering of our 500 series. No detail was left out to ensure this vehicle works as intuitively and relentlessly as you do.
GROUNDS MAINTENANCE LIFE, UNINTERRUPTEDThe Carryall 502 combines the features you need most to do your best work with the quality, performance, and engineering of our 500 series. With extra room, and a high-visibility dash, you can now manage and care for your grounds without interruption.No detail was left out to ensure this utility vehicle works as intuitively and relentlessly as you do.
- Status:New
- Vehicle:2023 Club Car Carryall 502 Gasoline
- Location:Bulldog Golf Cars
- Warranty:Manufacturer's w/ Extended Available
OTHER SPECS
- Battery:12-volt 500 CCA 105 min reserve
- Bed Box Dimensions (LxWxH) :44.2 x 47.5 x 10.5 in (112.2 x 120.6 x 26.6 cm)
- Bed Capacity :800 lb (362.8 kg)
- Brake System Type:4-wheel mechanical drum
- Cargo Capacity :1,200 lb (544 kg)
- Chassis:Body and Finish
- Cooling:Air cooled
- Curb Weight:W/ Batteries
- Displacement:429 cc
- Engine:Kohler closed-loop EFI
- Frame Type:AlumiCore™ — Ladder-style aluminum box beam
- Front Suspension:Independent leaf spring with dual hydraulic shocks
- Front Tire :18 x 10-10, 6-ply
- Fuel Capacity:5.5 gal (20.8 L)
- Ground Clearance:4.2 in (10.6 cm)
- Overall Height:47.1 in (119.6 cm)
- Overall Length:118 in (299.7 cm)
- Parking Brake:Foot operated, multi-lock
- Rear Suspension:Semi-independent leaf spring with dual hydraulic shocks
- Steering:Self-adjusting rack and pinion
- Top Speed:15-17 mph (24-27 kph)
- Towing Capacity:1,500 lb (680.3 kg)
- Track Width:Front
- Transmission:Continuously Variable Transmission (CVT)
- Wheelbase:78.1 in (198.3 cm)
